Shop for your Rear Sight Cover Mrkd Elit, Black Rubber For Swedish Elit 101 Diopter Rear Sight with Numrich Gun Parts - the world's largest supplier of gun parts. The front sight uses replaceable inserts. The inserts can be of the post or peep variety. The rear sight has an adjustable aperture. Diopter sights are extremely difficult to come by in the states. They can be ordered from gunstores in Switzerland, but are quite expensive. Expect to pay at least $225 plus shipping.

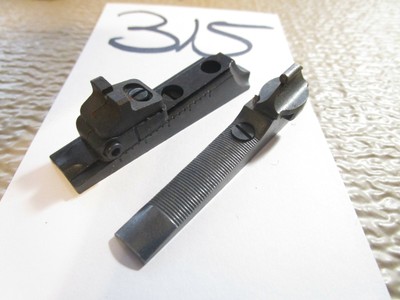

Sight Options for Schmidt-Rubin Rifles

A number of options exist for those who which to supplement or replace the existing sights on their Schmidt-Rubin Rifles. Some are available commercially, others are homemade.

The EAW Quick Loc Scope Mount

The EAW scope mount is a no-drilling mount, for use with the K31.

The mount attaches by clamping itself onto the thumb groove on the right side of the K31's reciever.

The rings are weaver style.

The mount is offset to the right, however, the scope does not interfere with ejecting the brass.

The EAW Quick Loc mount can be purchased from New England Custom Guns, although they have to be ordered from Germany, and will cost somewhere between $250-300 for mount, rail and rings.

Swiss Diopter Sights

TheK31 still remains popular for target shooting. However, the factory sights aren't very conducive to target shooting. As a result, the Swiss manufactured no-gunsmithing diopter sights for use with the K31.


Photo courtesy of Bob Lorenz

The front sight simply slides over the factory front sight, and is screwed down. Note: in some cases shimming is required.


Photo courtesy of Bob Lorenz

Diopter

The rear sight attaches to the thumb groove, much like the EAW Sight.


Photo courtesy of Jim Pregga

The front sight uses replaceable inserts. The inserts can be of the post or peep variety. The rear sight has an adjustable aperture.

Diopter sights are extremely difficult to come by in the states. They can be ordered from gunstores in Switzerland, but are quite expensive. Expect to pay at least $225 plus shipping.

For a translated manual click here.

Experimental Swiss Sights

Around 1953 the Swiss began experimenting with electronic sights.


Picture courtesy of Gregory Smith

The sight replaced the rear sight. The large box to the side is a battery to provide for low light usage. The tests proved unsuccessful, and the scope only saw limited production.

Other Solutions

As the Swiss solutions are rare and expensive, many individuals have come up with their own means of mounting scope. Note: most of the methods shown below permanently alter the rifle. SwissRifles.com neither condones nor condemns these alterations.

Adding target sights is a fairly common practice.


Photo courtesy of Roy Headrick

Ar15
Above is a Williams Foolproof rear aperture sight, #FP-SW, made for the 1911.
Note: some wood had to be removed to fit the sight


Photo courtesy of Roy Headrick

Here a Lyman 17AML front sight replaces the 1911 front sight.


Photo courtesy of Bob Lorenz

Here we have a Tompkins Target sight replacing the front sight of a 1896/11

Manual For Elit Diopter Sights


Photo courtesy of Bob Lorenz

A Redfield Olympic Sight is mounted on the rear.


Photo courtesy of Bob Lorenz

Detail of the modifications to the receiver.

Of course the modifications aren't limited to iron sights.


Picture courtesy of Pierre St. Marie

In the picture above, a dovetail groove has been cut into the left side of the K31s receiver.
The mount is then slide into the groove and bolted into place.


Photo courtesy of Chris Selfslag

Above is a homemade attempt a creating a scopemount. Notice the mount replaces the rear sight.


Photos courtesy of Chris Selfslag

Above are some more detailed photos of the mount.


Photo courtesy of Franz Schmidt

Here is another homemade mount, which replaces the rear sight. Note: this rifle mounts the scope
forward of the receiver, 'Scout' style.

Be sure to check back from time to time. As more folks send my pictures of their sights, I'll post them

Return to the Schmidt-Rubin Page

Type K Diopter Sight manual
Translated from French


Swiss Diopters on the firing line


Front Cover

Diopter Rifle Sights

ContentsPage
Description 2-3
Characteristics Techniques 2-3
Front Sight Installation 4-5
Rear Sight Installation 6-7
Adjusting the Line of Sight 8-9
Aiming 10
Parts List (not translated) 11-15

Description; The type K diopter plus front sight is a aiming system that can be mounted on any K31 without any modification to the weapon.
Technical characteristics;
The diopter is adjustable for distances of 50m to 600m. It comes with an eyepiece with a perforated disc that has six sighting holes for the convenience of the shooter and measuring, respectively; 1,0mm, 1,2mm, 1,4mm, 1,6mm, 1,8mm, 2,0mm.
Windage and elevation adjustments are made with two adjustment screws. The elevation screw should be adjusted in the following manner;
shot too high-turn elevation screw clockwise
shot too low - ' ' ' counter-clockwise
windage adjustment;
shot to left- turn adjuster to the right
shot to right- turn adjuster to the left
The adjustment screws for both elevation and windage are furnished with click stop graduated lines that represent 2 centimeters each at 300meters distance.
The sight line distance is 760mm.

(Pages 2-3)

Mounting the front sight;
-back off the mounting bolt (27) until the threads are no longer visible.
-with arrow (26) pointing towards target, slide the front sight assy. over the rifle's fixed sight until it seats
-firmly press down on the front sight barrel while while tightening the set screw (29).
- check for play in all directions (there should be none).
(Pages 4-5)

Mounting the diopter (rear sight);
-Unscrew (without forcing) the knurled mounting screw (9).
-using your left hand, set the diopter assembly in place onto the receiver with the forward leg (7) set on the wide part of the ejection port (8)and the eyepiece just on top of the rear of the receiver.
-hand tighten to set screw, then finish tightening with the factory tool.
-hand check for play in all directions (there should be none).

(Pages 6-7)

Adjusting the line of sight;
-Once in place on the receiver, make sure that the eyepiece is centered in windage (24) and elevation (25) by looking at the long white reference lines (C&D) (opposite of the side you aim through).
-next, set your factory front sight in position 10, representing 1000 meters. Now look through the diopter and line everything up on the target. The sight picture should be perfectly concentric and tangent.

(Pages 8-9)
Aiming process:

Align the front tunnel and rear tunnel to give a concentric sight picture, where the target appears just above the front sight post.

(Page 10)
Nikon

(Pages 12-13)

Elit

Mp5 Diopter Sight


Shooter's card

To see the original click here

Manual For Elit Diopter Sights For Seniors

Acknowledgements: Thanks to Vaudois for the translation, and thanks to Carlos for the scans.
